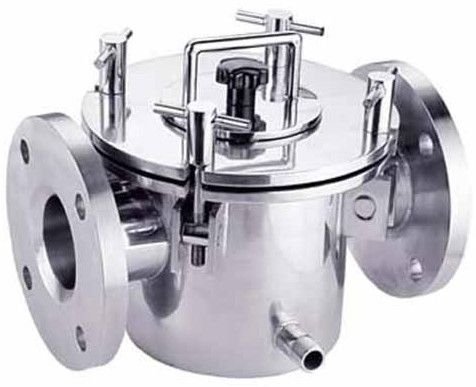

Liquid Line Magnetic Trap

Magnetic Liquid Traps are designed for heavy duty, large volume liquid and semi-liquid line flow systems. They provide magnetic protection for liquid lines and processing equipments. They preserve product purity by removing small contaminants. So such separators are ideal for liquid purification.

Magnetic Bars containing high intensity rare earth neodymium iron boron magnets are housed within a 304 stainless steel vessel. Magnetic configuration ensures maximum exposure of contamination to the high intensity tubes without impeding liquid flow.

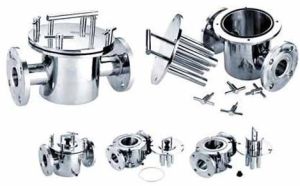

With its flange or quick release clamp top access design, the Trap is easy to be cleaned. Simply remove the top, lift out the magnet cage, wipe clean and reinstall.

• Easily installed;
• Cleaned simply and efficiently
• Manufactured in 304 or 316 stainless steel to food industry standards
• Highly effective performance due to powerful rare earth magnets – 12,000 gauss
• Specially manufactured to your dimension
• It can be fastened by screw nuts; it also can be fastened by Tri Clover clamp
• Easy-clean type can be provided on request
• All of magnetic bars are waterproof
• Finish: Well polished
